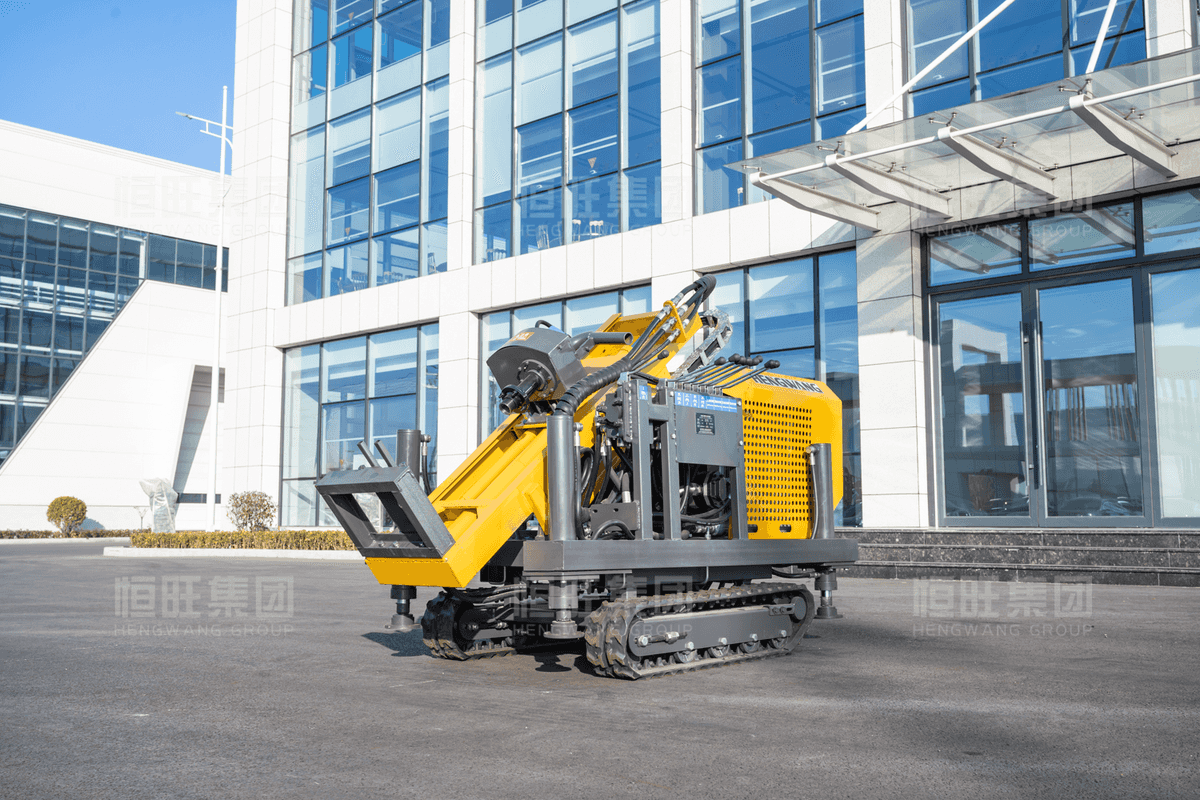

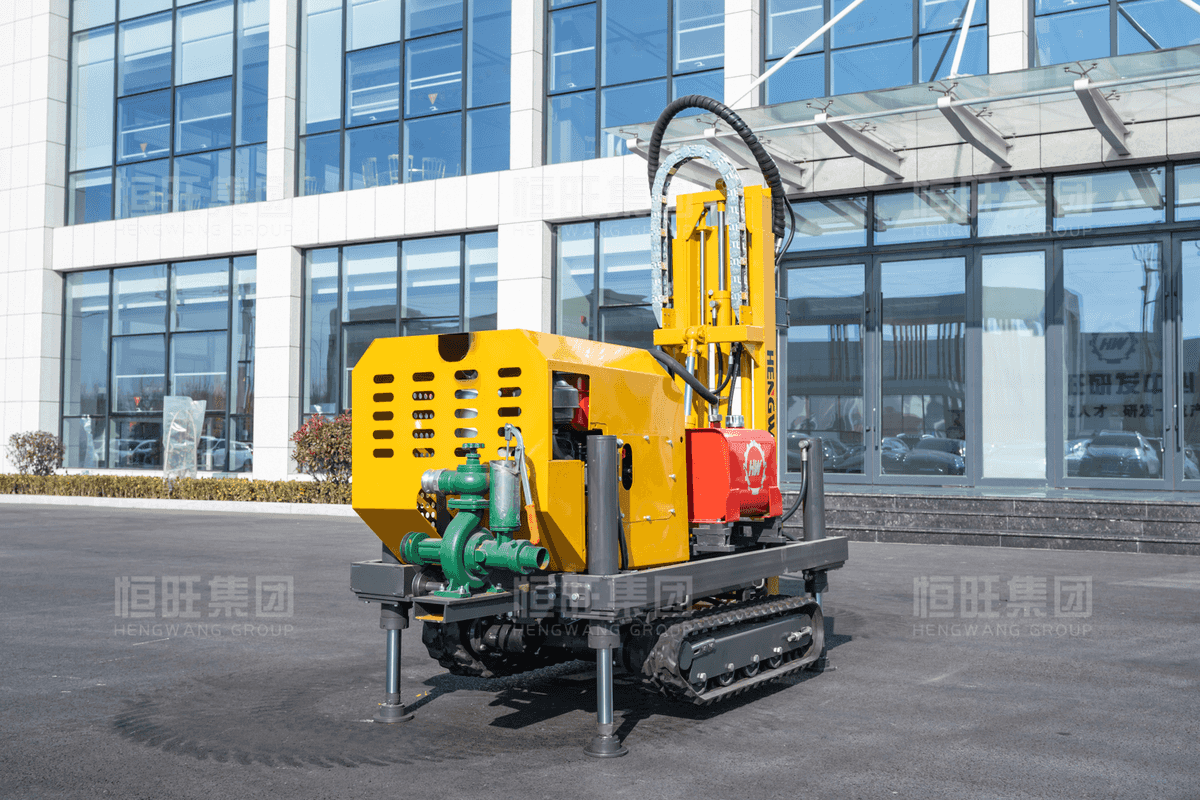

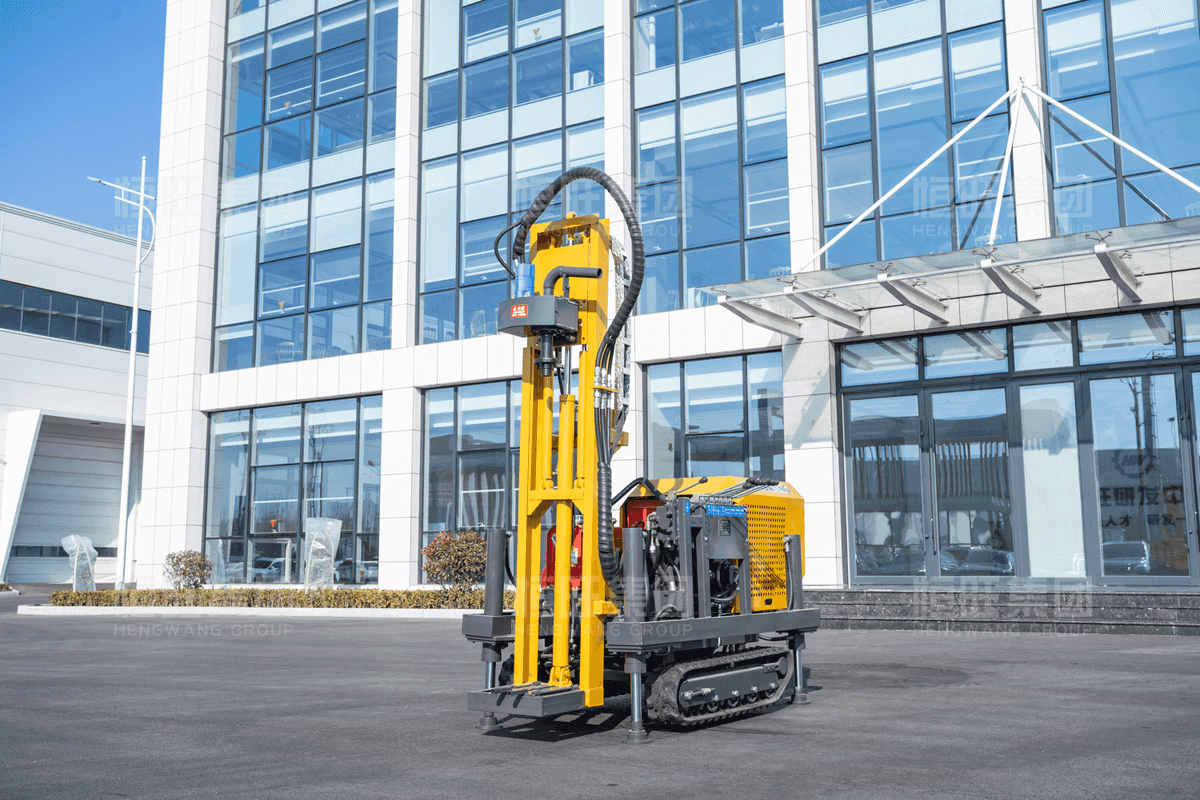

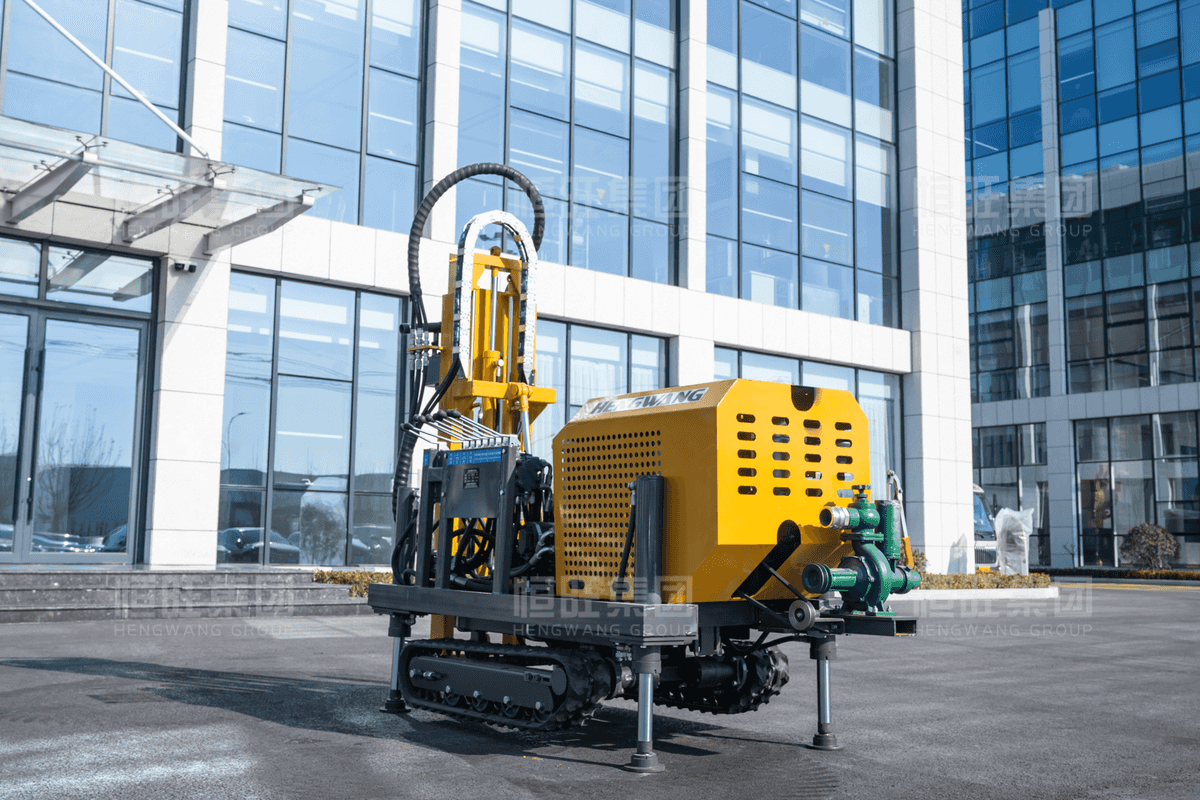

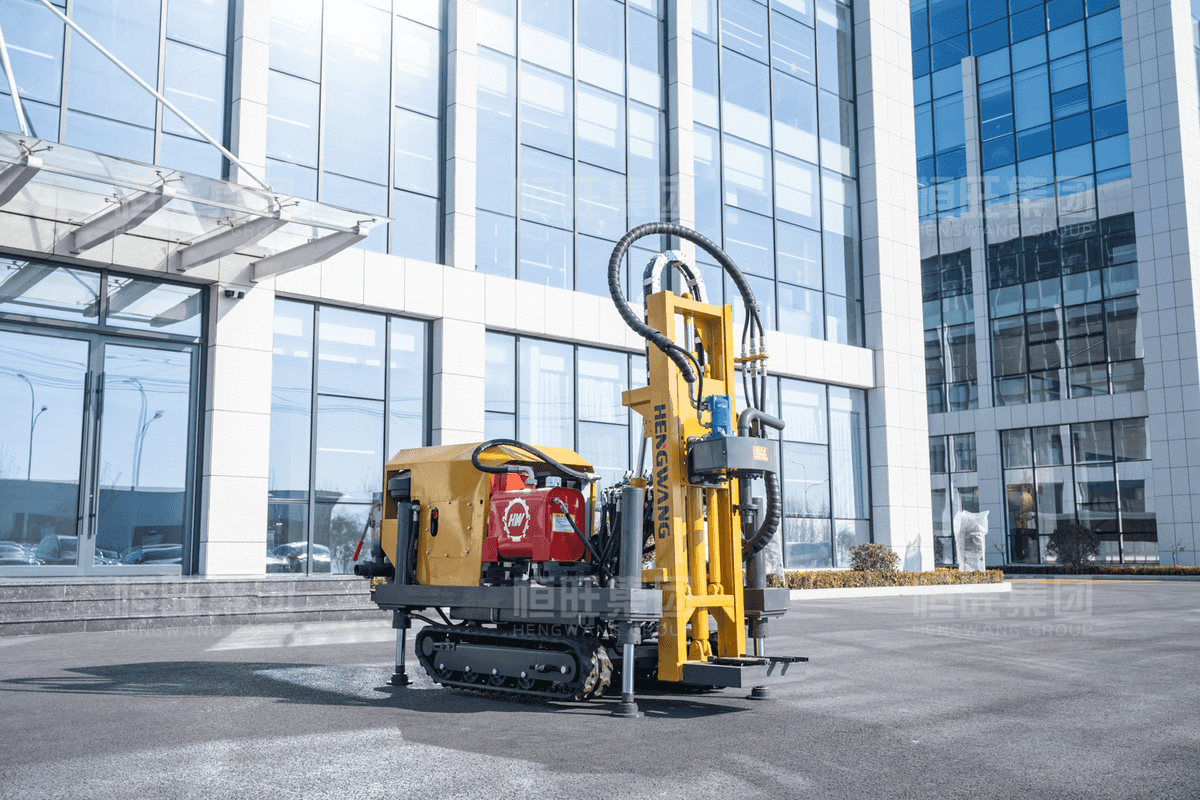

HWSZ180 Mini Crawler Water Well Drilling Rig
Drilling diameter: 100-350mm
Max Speed: 272 r/min
HWSZ180 Technical Specifications
| Category | Parameter | Value | Unit |
| Overall Configuration | Operating Weight | 1220 | KG |
| Engine Model (Standard) | 25 | HP | |
| Engine Model (Optional) | 22/35 | HP | |
| Max. Speed | 272 | r/min | |
| Gear Pump Displacement | 40/16 | ml/r | |
| Hydraulic Tank Capacity | 36 | L | |
| --- | --- | --- | --- |
| Technical Specifications | Rotary Head Rotation | Single Motor Drive | |
| Max. Torque | 1500 | N.m | |
| Max. Speed | 272 | r/min | |
| Drill Rod (Standard) | φ50*1000/1500 | mm | |
| Drill Rod (Optional) | φ60*1000/1500 | mm | |
| Drill Rod (Optional) | φ73*1000/1500 | mm | |
| Hole Diameter | 100–350 | mm | |
| Drilling Depth | 0–150 | m | |
| Stroke Length | 1.7 | m | |
| Mast Tilt Angle | 40 | ° | |
| Gradeability | 25 | ° | |
| Traveling Speed | 2 | km/h | |
| Ground Clearance | 120 | mm | |
| Track Width | 180 | mm |
PRODUCT ADVANTAGES
01 High work efficiencyThe crawler water well drilling rig significantly accelerates the drilling speed, greatly shortening the project cycle compared to traditional manual well drilling methods.
02 Higher accuracyThrough the precise control system, the drilling depth and position can be precisely controlled at the millimeter level, ensuring that each drilling operation strictly meets the design specifications.
03 Reduce labor costsIt can be optionally equipped with a remote control for remote operation, automating the drilling process. This significantly reduces the demand for manual labor and lowers labor costs.
04 Improved securityIt reduces the risk of direct manual operation, especially when handling large or heavy materials, and improves the safety of the construction site.
05 Environmental protection and energy savingPowered by a renowned brand engine, it reduces noise pollution and fuel consumption, making it more in line with the concept of green and environmental protection.
06 Highly adaptableA crawler-type water well drilling rig is used for drilling wells in households and factories, extracting water for domestic use and agricultural irrigation, installing water-cooled air conditioners and solar water heaters, as well as for pile driving at construction sites.
