Products

Hengwang Group offers a wide range of water well drilling rigs, exploration drilling rigs, rock drilling rigs, piling rigs and other piling drilling equipment.

Air Compressor

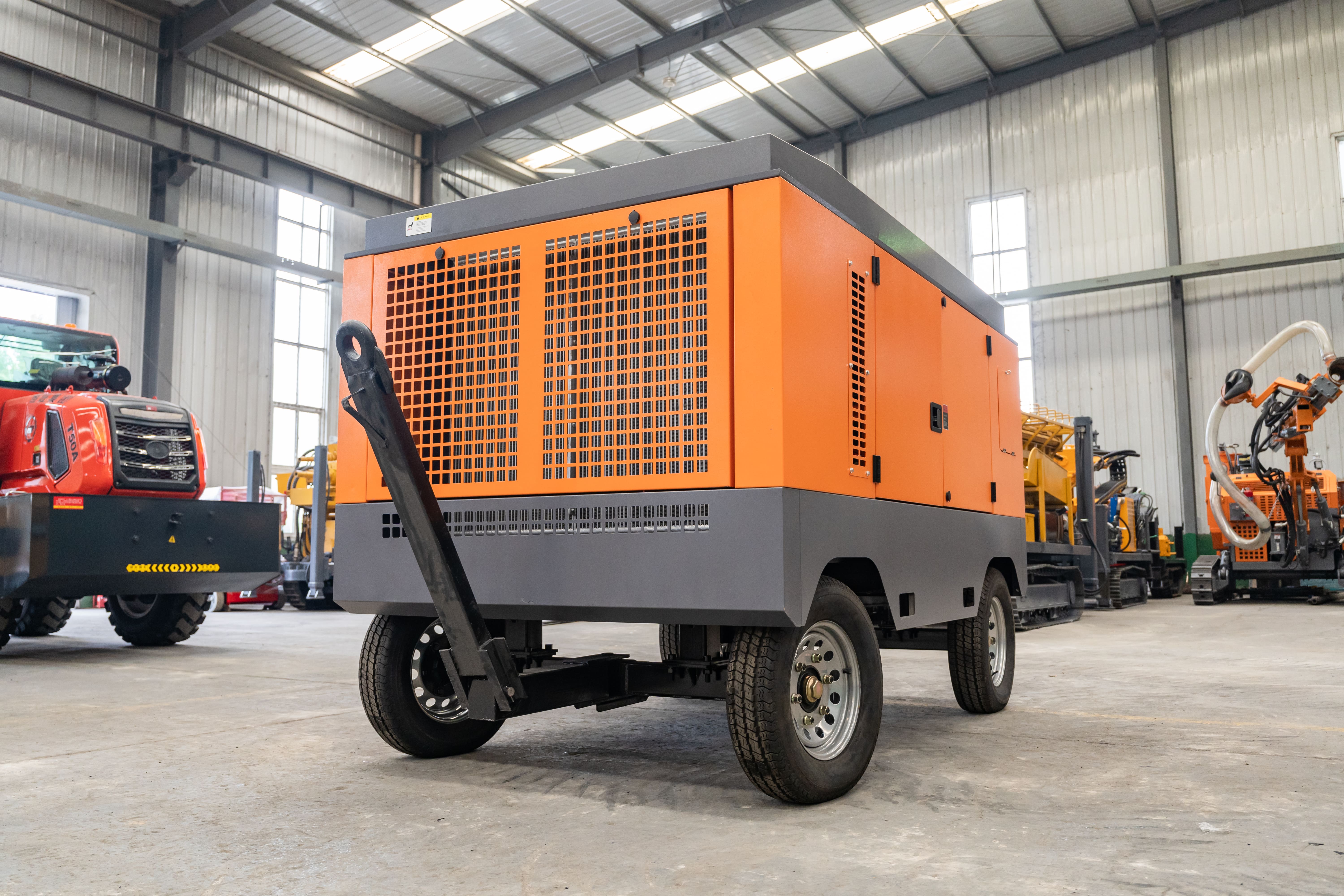

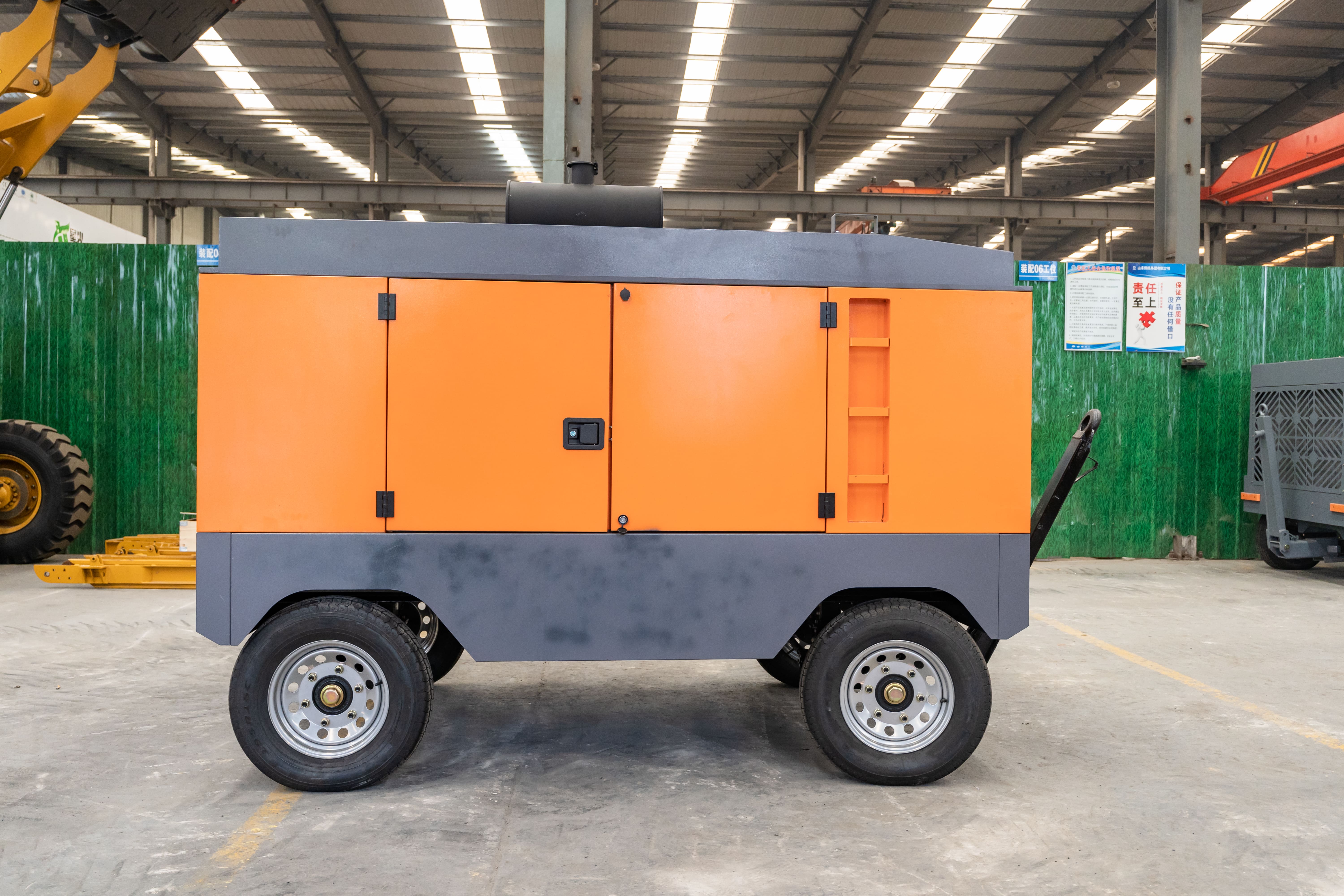

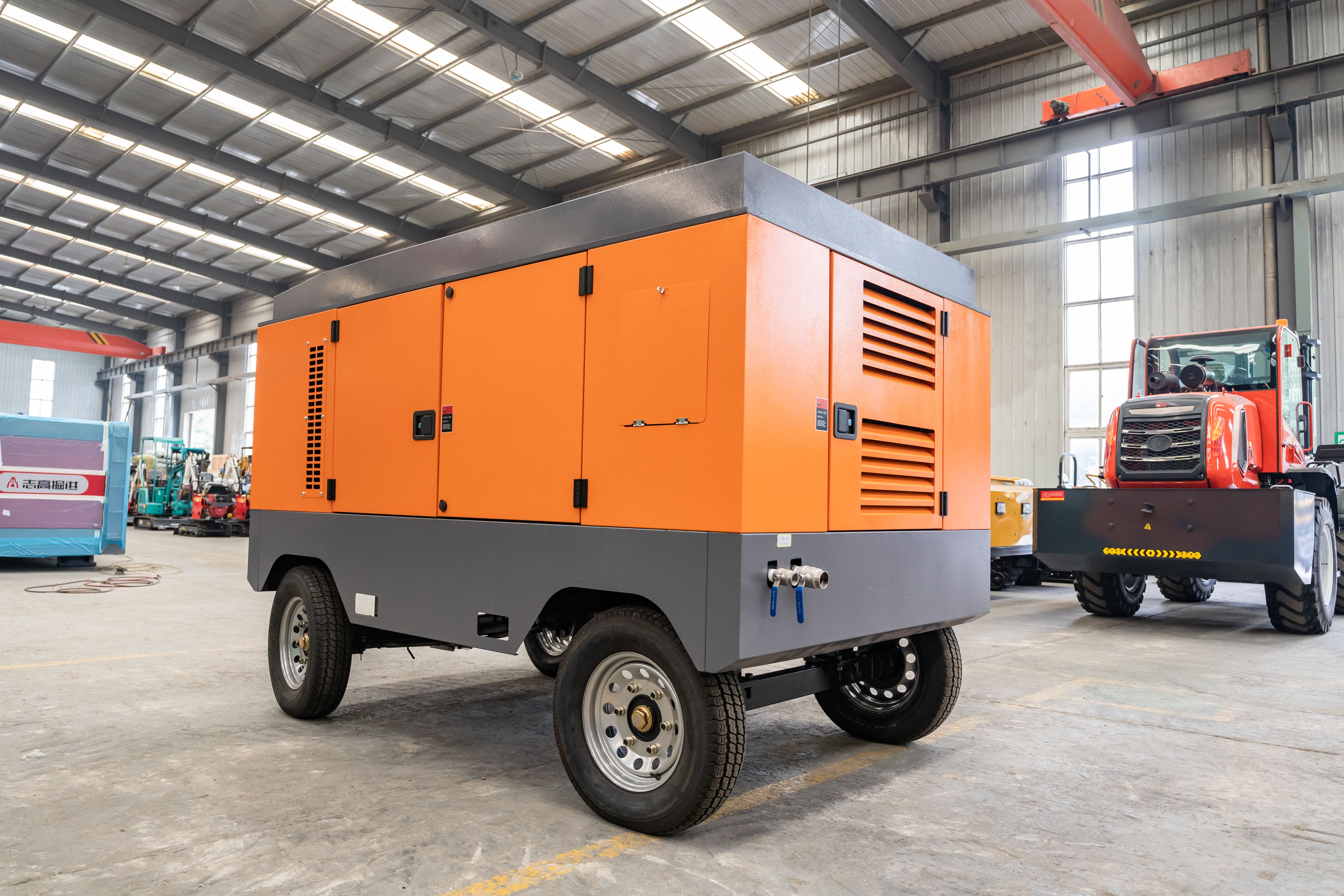

HW-15/15 Screw Air Compressor

Factory Direct
Training on Arrival
One-year warranty

Exhaust volume:15 m3/min
Exhaust pressure:15 bar
Drive mode:Diesel engine driven

Enhanced Lubrication Efficiency:

Experience superior performance with our advanced "Convex-Convex" engagement design.

This innovative feature facilitates the formation of a hydrodynamic lubrication film, reducing horizontal leakage in the contact zone.

This not only enhances the efficiency of the compressor but also improves rotor processing and testing properties.


Quiet, Low-Vibration Operation:

Embrace the "large rotor, large bearing, and low-speed" design philosophy, setting our compressors apart from the rest.

With a 30-50% lower revolving speed compared to other brands, enjoy reduced noise, vibration, and exhaust temperature.

This design also enhances rotor rigidity, prolongs service life, and minimizes sensitivity to debris and oil carbide.


Versatile Power Range:

Our compressors cover a power range from 4 to 355KW. For compressor applications without a direct-coupled gearbox, choose from the 18.5 to 250KW range.

For those with Level 4 direct-coupled motors, opt for the 200KW and 250KW options, featuring an impressively low speed of 1480 rpm.


Exceeds Energy Efficiency Standards:

Rest easy knowing that our compressors fully conform to and surpass the requirements outlined in GB19153-2003.

We not only meet but exceed the Limited Values of Energy Efficiency and Evaluating Values of Energy Conservation for Displacement Air Compressors.


Upgrade to Peak Performance Today – Seize the Exclusive Offer!




ModelCapacity (m3/min)Exhaust pressure (Mpa)Model of engineWeight (Kg)Dimensions (mm)
HW5/850.8YNE143RA/4DW91-56G21400/13002050×1000×1250
HW10/8100.8YCD4T22T-105A17001900×1306×1552
HW13/8130.8YC4DK120-T3011750
2441×1806×2059
HW15/15-1151.5QSB5.9-C190-3125003050×2182×2500
HW15/15-2151.56DF1-20GAG224503080×1650×2000
HW15/15-3311.5YC6J190-H30026003250×1610×2470
HW60 18/18181.8QSB5.9-C220-3024002900×1605×1797
HW19/20192.06CTA8.3-C26032002920×1780×2622
HW24/22242.2YC6L310-H30038003200×1800×2285
HW29/23-129
2.3CA6DL2-35G31-YM10 3600
3100×1900×1950
HW29/23-2292.36DL2-35KG31-YM1039003500×1980×2260
HW29/24292.4YC6MK400-H30042003776×2000×2032
HW31/25-1312.5CA6DM2-42GAG242003500×2000×2150
HW31/25-2312.5CA6DM2-42GAG31-YM104200
3500×1980×2260
