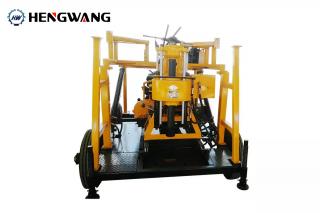

XY-3T Hydraulic Drilling Rig
Drilling depth: 600m
Drilling diameter: 75-325mm
Rated Power: 39Kw
Watch Product Video
  • PRODUCT DESCRIPTION
  • TECHNICAL PARAMETERS

XY-3T Hydraulic Drilling Rig


  • XY-3 series drilling rig is a medium depth core drilling machine, the machine is Spindle core drilling rig mainly used for diamond drilling and able to meet the needs of various drilling Process. It can match the corresponding electric motor or diesel engine. The structure of the machine is simple, easy dismantling, easy to operate.

Main feature

  • 1. The rig is equipped with latest MW525 car transmission assembly, it owns 10 forward gears and 2 reverse gears, the gear speed design is reasonable to meet the needs of different drilling technology.
  • 2. The drilling rig with large output torque and bearing capacity easy to handle a variety of underground accidents. Mechanical transmission structure is compact, spindle diameter is 96mm, bearing distance is big, drilling rig rigidity is good.
  • 3. Hydraulic system controls the feeding pressure and speed to meet the needs of all kinds of formation drilling. The machine is equipped with pressure indicator at the bottom of the hole, it is easy to grasp the situation inside the hole.
  • 4. This drilling machine is small size, light weight, good disassembly, good layout, flexible and reliable operation, easy maintenance.



(Whole machine parameters)

Model

XY-3T

Drilling depth(m)

600

Open hole dia. (mm)

325

End hole dia. (mm)

75

Drill angle (°)

90-75

Matching power (kW)

YUNNEI YN27/ 39

Weight (kg)

3600

Dimension(L*W*H) (m)

2. 9*2. 56^3. 3


Spindle)

Speed (r/min)

32-1057
.

Stroke (mm)

600
:

(Winch)

Single rope lift force (kg)

3000

Single rope lift speed (m/s)

0. 3-1. 9

Wire rope dia. (mm)

Φ12.5

Wire rope capacity(m)

65

(Drill Tower)

Rated load (ton)

18

Effective height (m)

6.5
