Geological Exploration Drill Rig

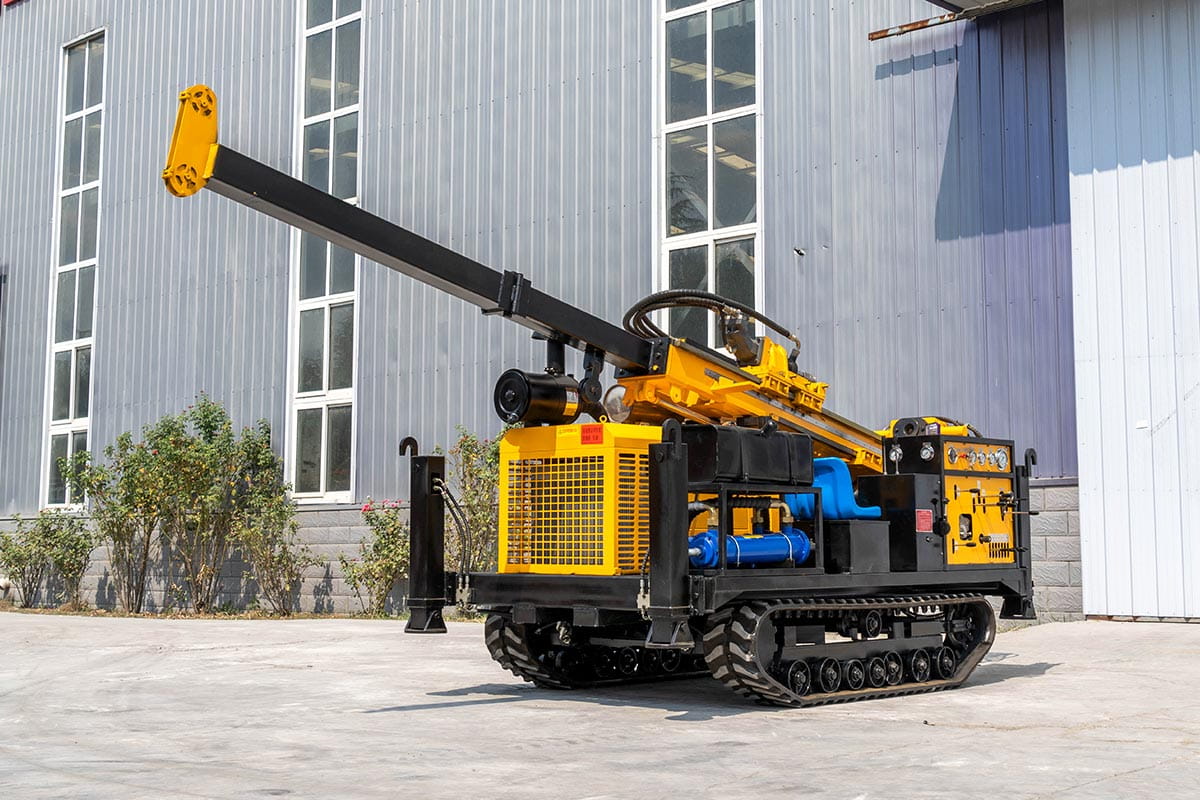

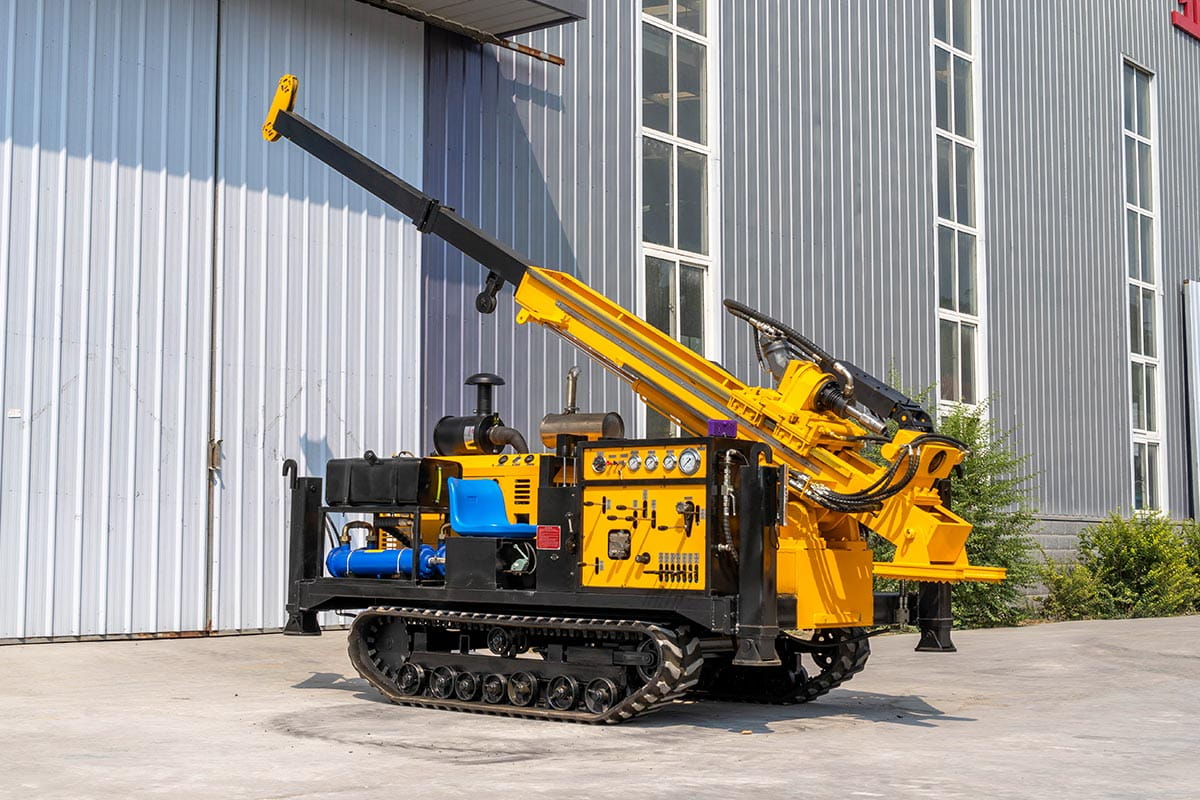

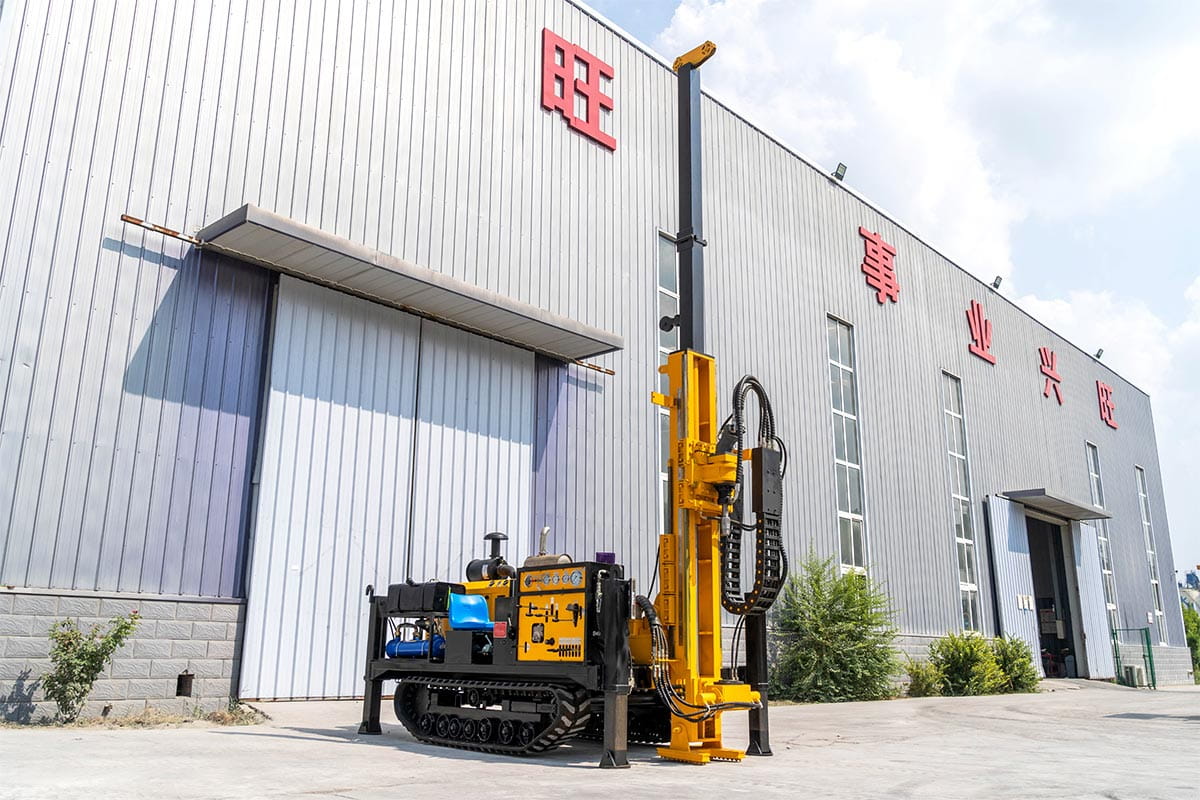

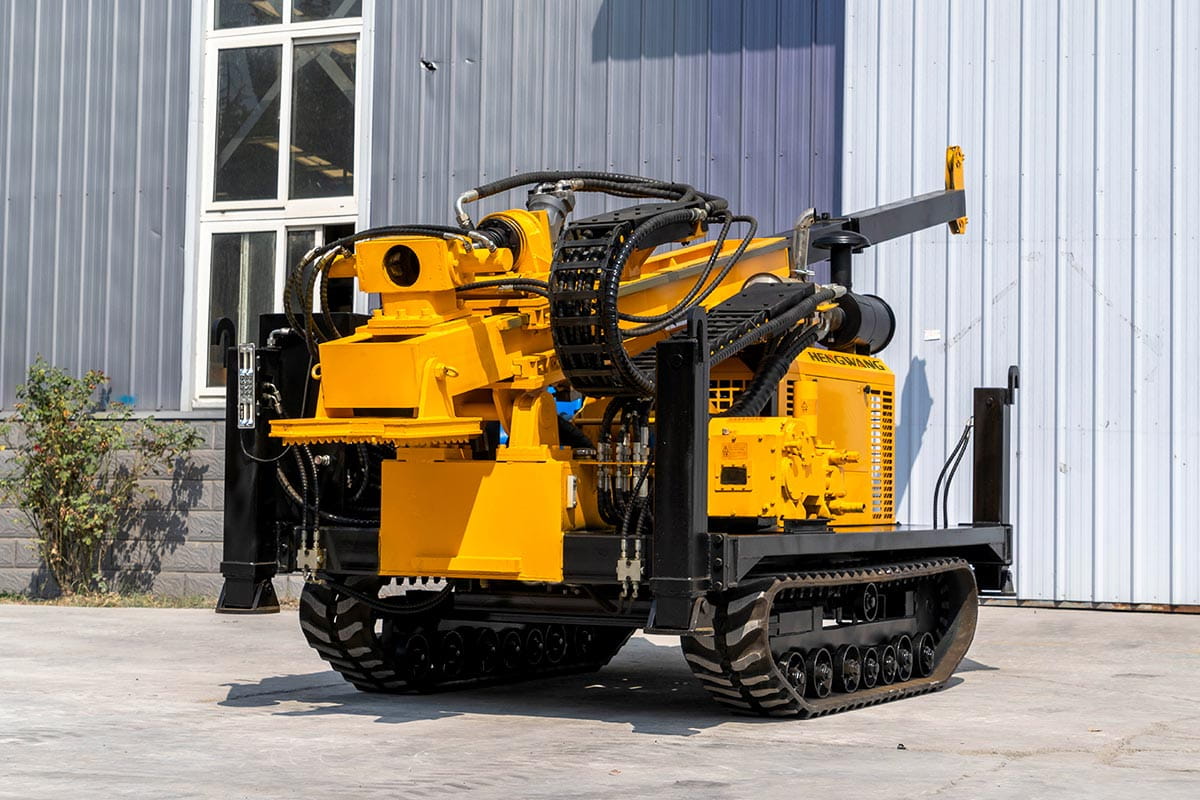

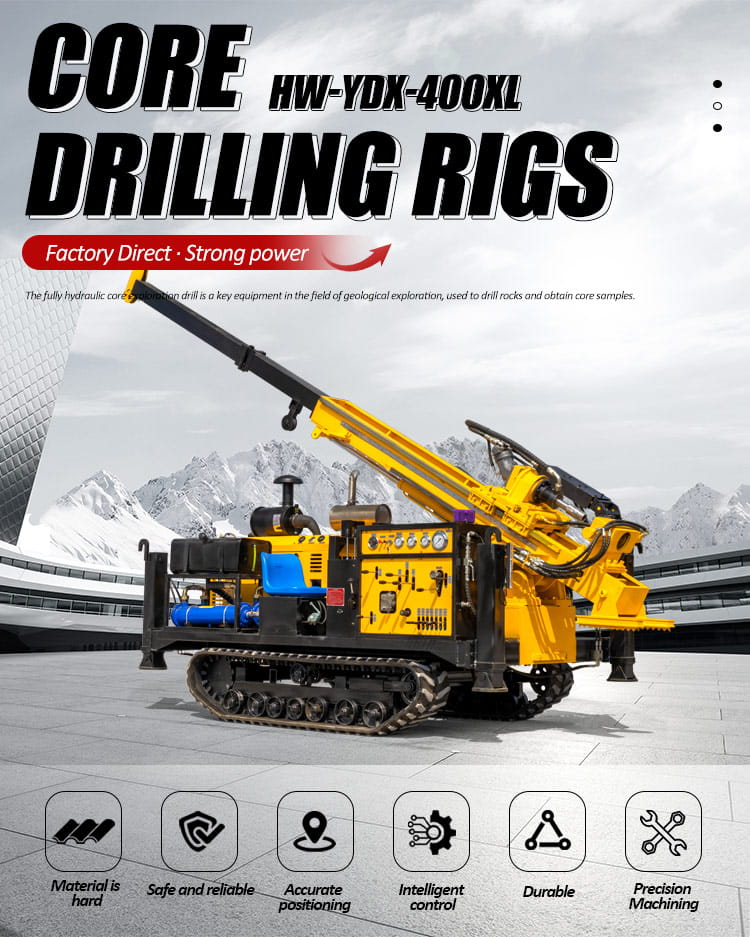

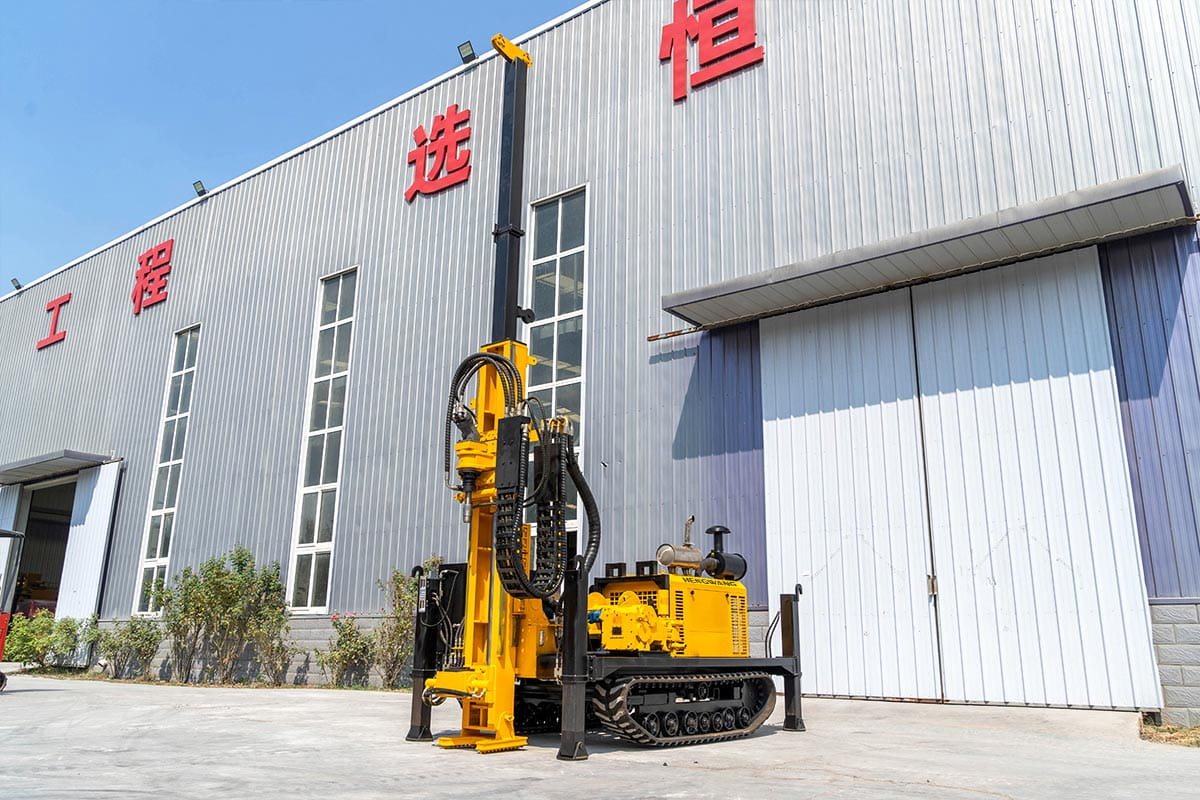

HW-400XL Fully Hydraulic Rope Coring Drilling Rig

Factory Direct
Training on Arrival
One-year warranty

Drilling depth:180-400-500(m)
Rated speed:2400(rpm)
Maximum torque:300-500(N·M)

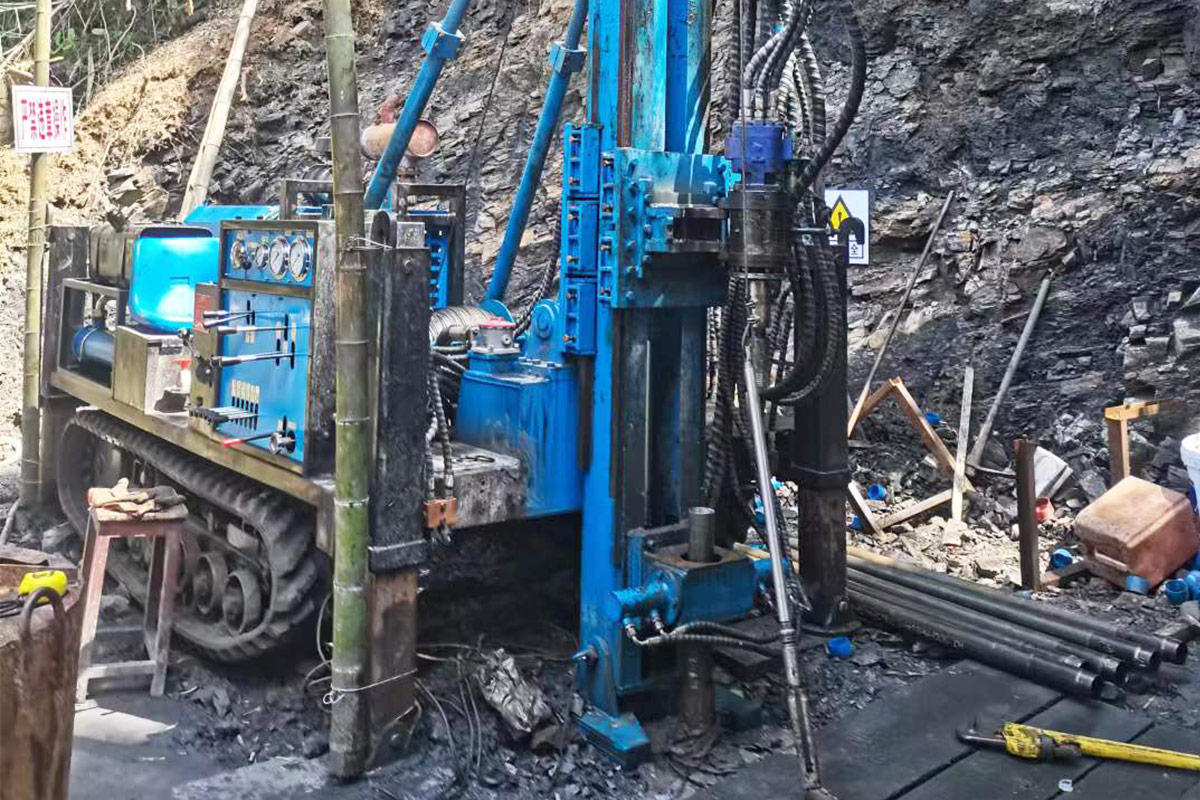

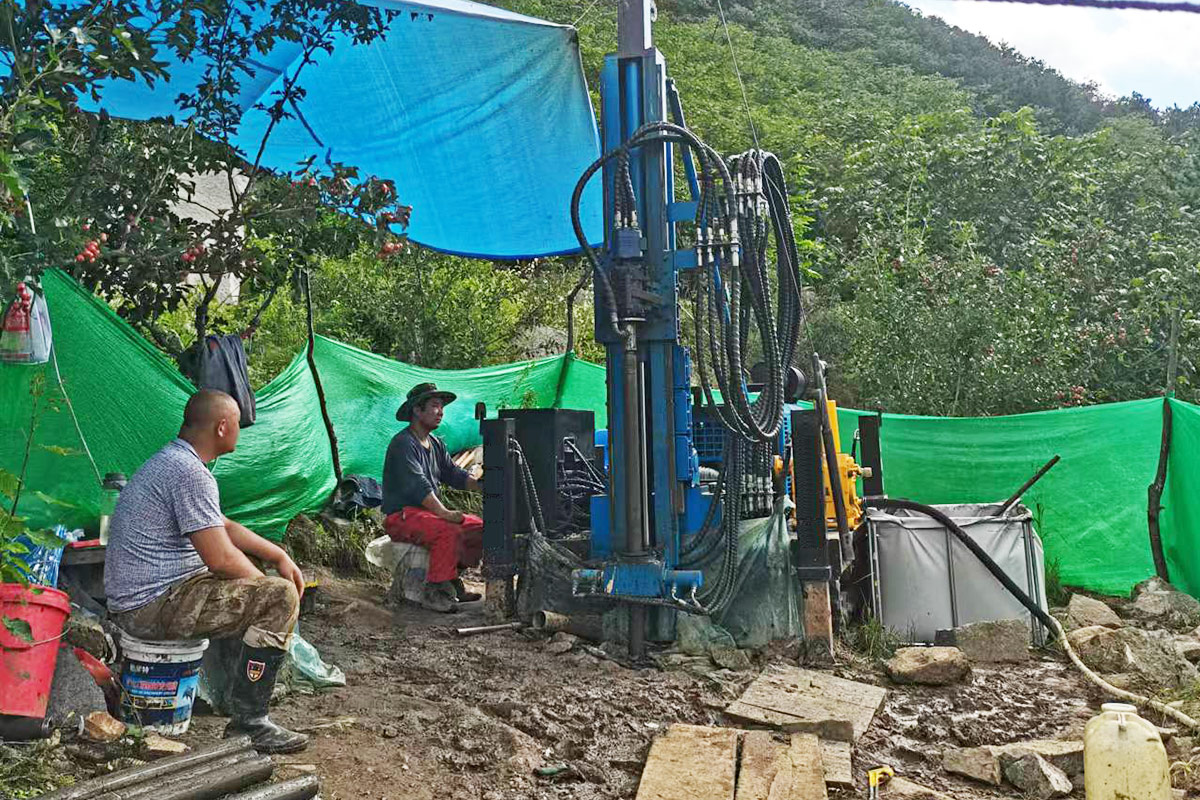

1. It can be widely used in exploration, gold mine, iron ore, coal, lithium mine and other scenarios.

2. Easy to install, no need to lift the drill pipe during the rope coring process.

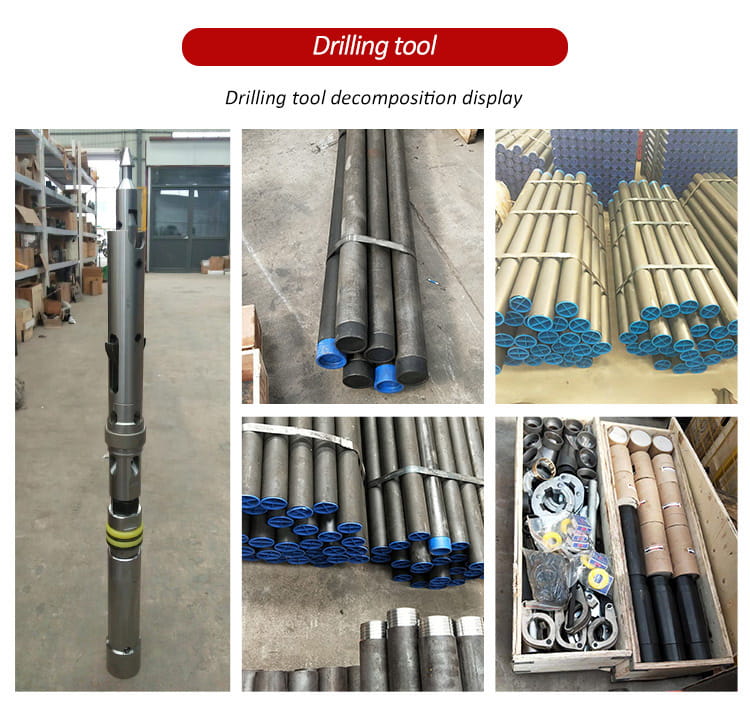

3. Thin-walled drilling tools with high coring efficiency.



Parameter:


modelHW-YDX-400XL
Drilling ability
caliberHTW-NTW-BTW
depth180-400-500(M)
Hydraulic system
preset pressure21(MPA)
Rated flow168(L/min)
Cooling typeAir cooling + Water cooling
Engine
BrandYuchai
TypeTurbocharged
Rated rotary speed2400(RPM)
Rated power78KW/70KW

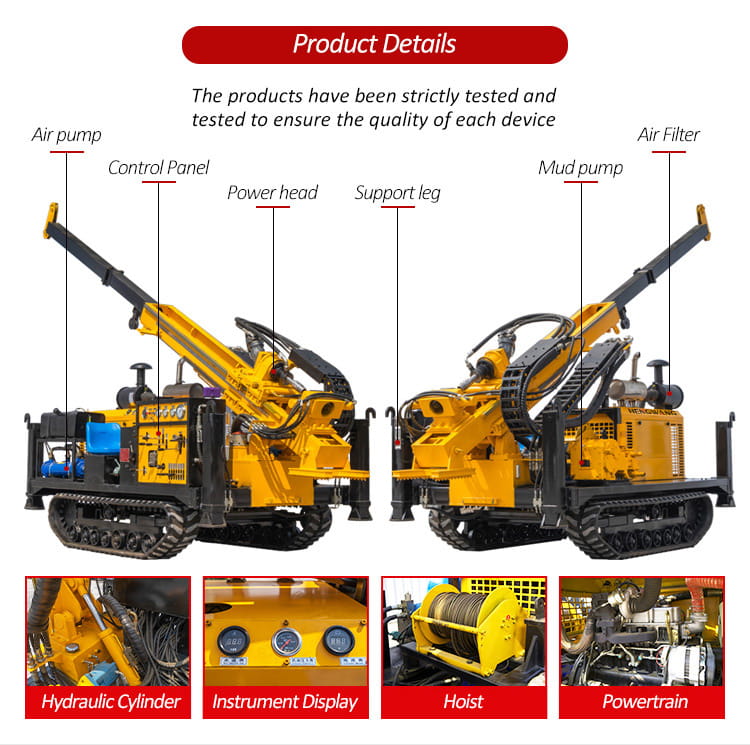

Power head
Maximum torque300-500(N.M)
Maximum rotary speed1300(RPM)
Feeding stroke1900(MM)
Drilling tower

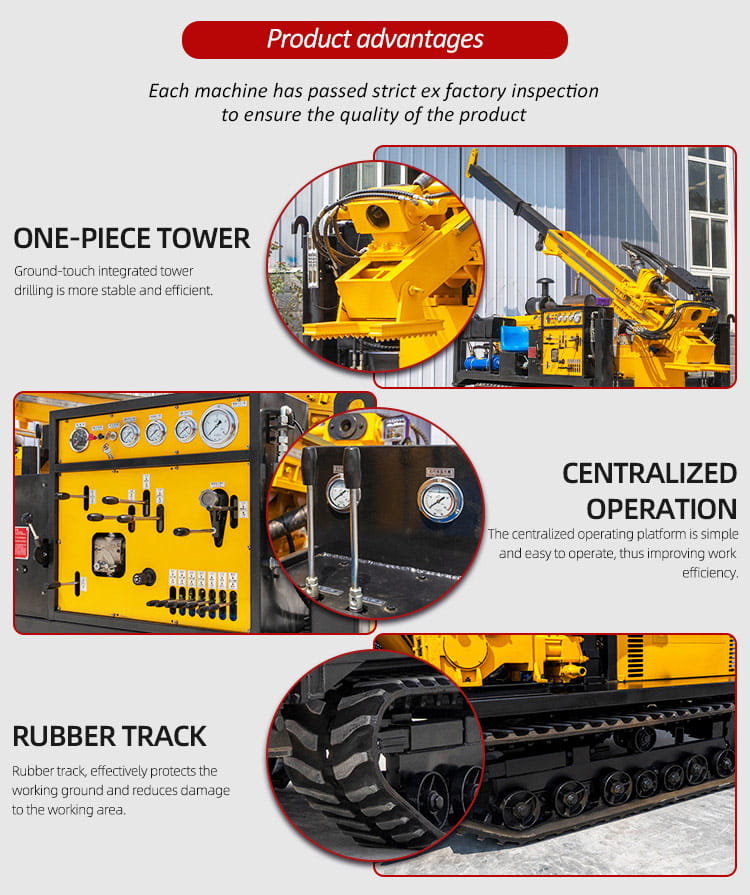

TypeGround contact integrated tower
Drilling angle45-90(°)
Lifting force12(T)
Feeding force6(T)
Winch
Lifting force500(KG)
Rotary speed100-240(RPM)
Wire rope diameter6(MM)
Rope capacity500(M)
walk
typeManual + remote control
Walking speed2.5(KM/H)
Single machine climbing angle45(°)
hydraulic mud pump
mud pumpContains Bw-90 mud pump
flow30-90(L/min)
pressure4-7(MPA)
Shipping dimensions4000*1900*1800(MM)
Total Weight4.3(T)




Due to product upgrading, some parameters may be changed, and the latest parameters can be obtained by submitting the form.
