Engineering Drill Rig

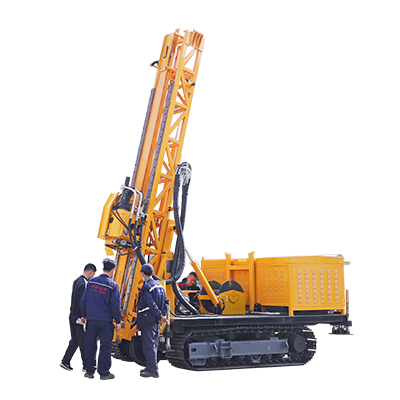

15m Anchoring Drilling Rig

Factory Direct
Training on Arrival
One-year warranty

Drill diameter: 0~300mm
Drill depth (m): 0~40m
Drilling angle: 0-180°

The anchoring rig serves as a crucial tool in addressing landslide and dangerous rock mass anchoring projects, primarily involved in the prevention and mitigation of various geological disasters in hydropower stations, railways, and highway slopes. It is especially well-suited for high slope rock mass anchoring projects. Additionally, it finds applicability in urban deep foundation pit support, anti-floating bolt and foundation grouting reinforcement engineering holes, blasting holes for blasting engineering, high-pressure jetting piles, tunnel pipe shed support holes, and more.

This versatile rig plays a significant role in reinforcing unstable slopes, securing rock masses, and enhancing the stability of geological formations. It offers a reliable solution for addressing geological hazards in critical infrastructure projects like hydropower stations, railways, and highways.



maximum vertical height15m
Overall dimensions of crawler chassis3500*2300
Track shoe width400
engine modelYCD4J22T-115 (National Second Yuchai four-cylinder engine, optional)
Engine maximum power/speed85kw / 2600r/min
electric motor45kw (with multi-function distribution box)
Lower slewing bearing1.2m; 360 degree rotation; single planetary reducer
Upper slewing bearingCorson 21 integrated plate: working 180°
Hydraulic oil pumpR1-50/50/32-high pressure special pump
Big frameDouble layer frame
Hydraulic legsFour hydraulic H-shaped legs
support armtwo sections (both arms)
Power HeadDual hydraulic motor power head, adjustable speed, powerful power
drilling angleCan drill flat holes/can drill oblique holes/can drill vertical holes
Drilling diameter/depth0-300mm/0-40m
Chain carriageStroke 4m; Pressurized power: planetary power
Drill pipe propulsion and lifting power/
Hydraulic system radiatorYS-27A (Hengsheng Lida)
encircleFully enclosed (including engine cover)
CounterweightSolid counterweight; retractable 0.8 m
weight18.5T
driving cabhigh-end cockpit
