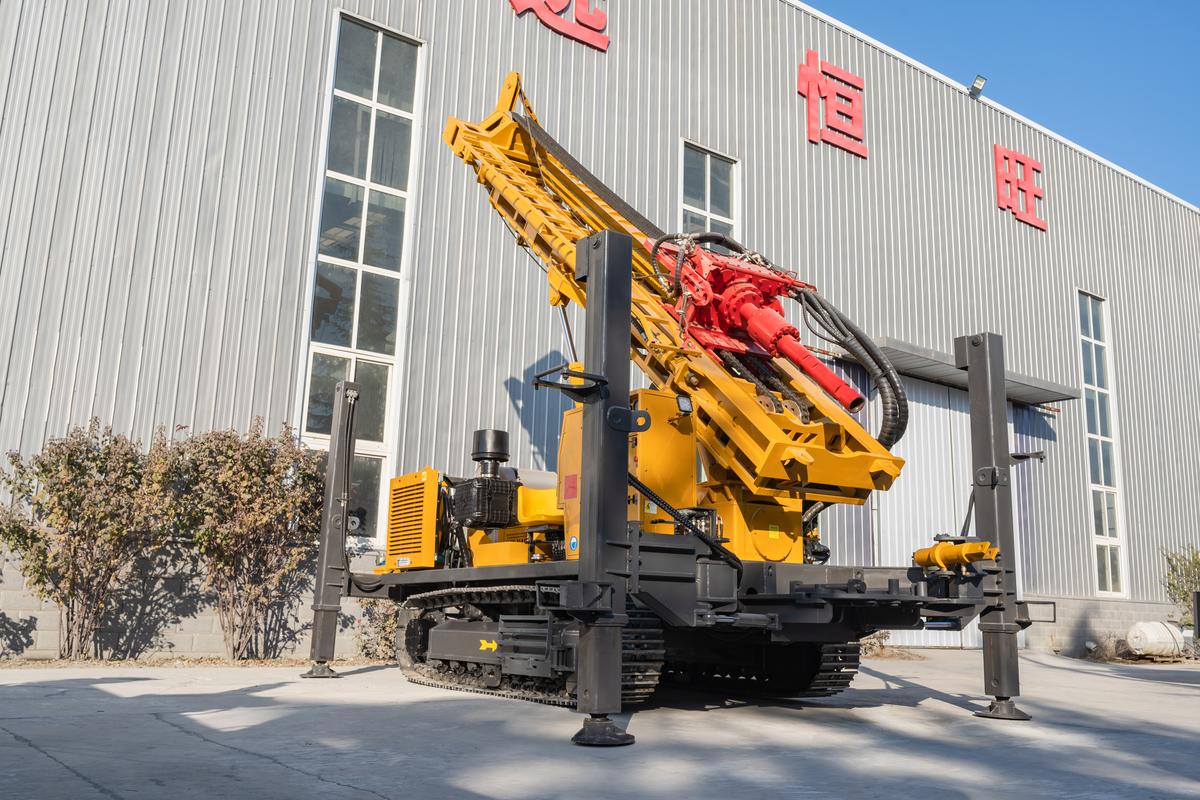

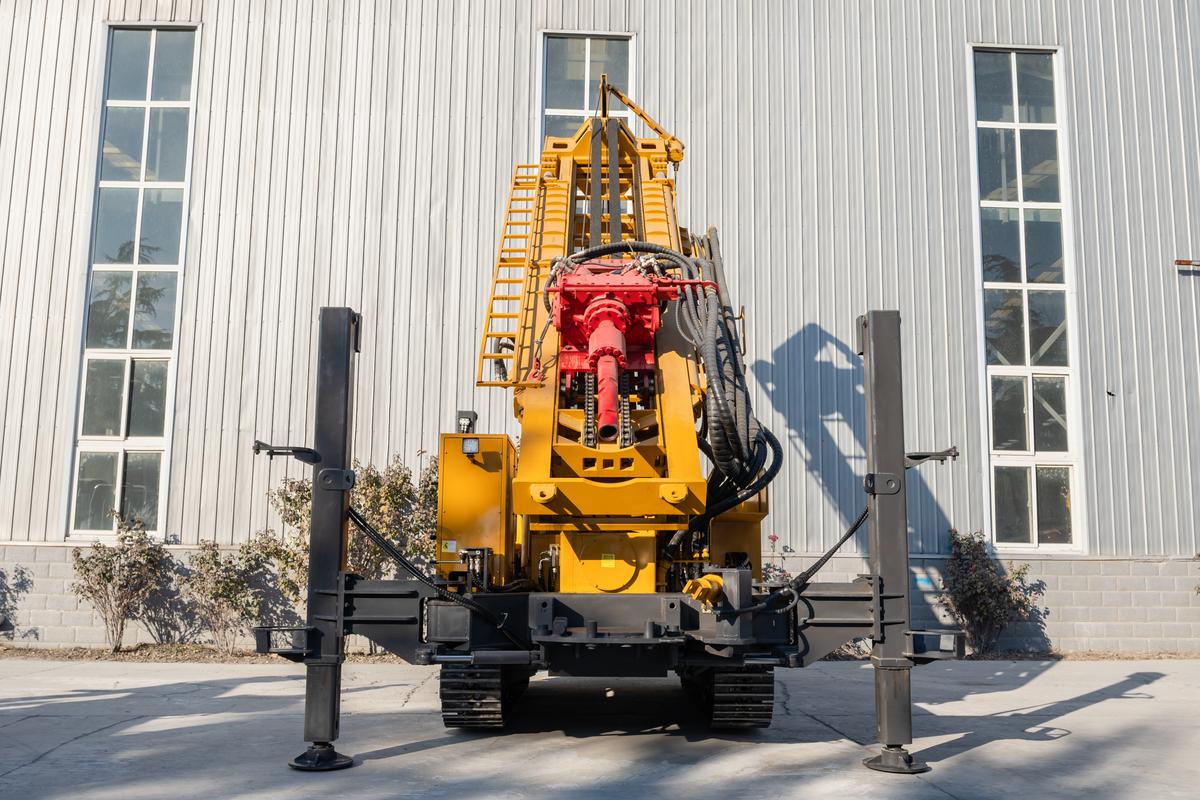

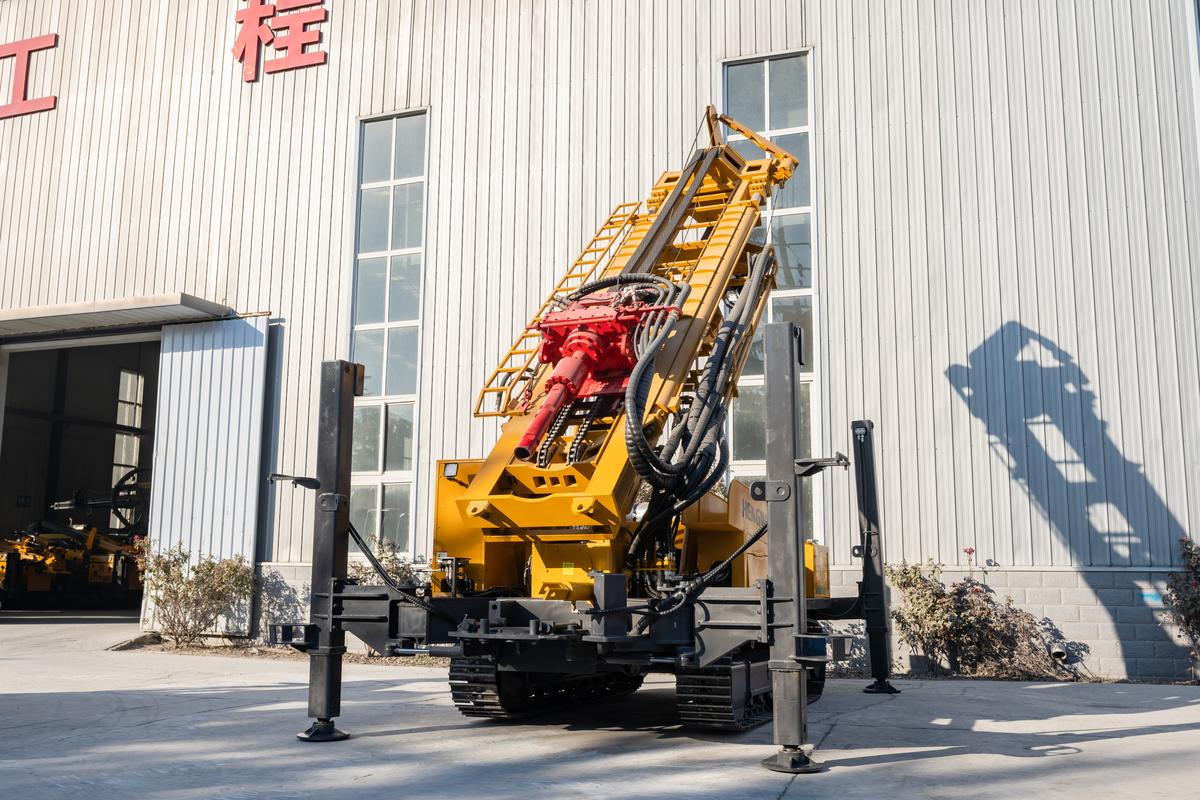

HW-1000S Pneumatic Drill Rig
| Model | HW-1000S |
|---|
| Engine | Cummins 194KW |
| Power | 110 KW |
| Main Pump | Piston Pump |
| Maximum Drilling Depth | 1000 m |
| Drilling Diameter | 105–800 mm |
| Working Air Pressure (MPa) | 1.6–8 MPa |
| Total Air Consumption | 16–96 m³/min |
| Drill Rod Length | 7m |
| Drill Rod Diameter | Φ114 |
| Lifting Capacity | 8 t / Lifting Capacity: 52 t |
| Slow Lifting Speed | 8 m/min / Slow Feed Speed: 0.5-10 m/min |
| Fast Lifting Speed | 30 m/min / Fast Feed Speed: 61 m/min |
| Rotational Torque | 26,000/13,000 Nm |
| Rotational Speed | 0–70 r/min; 0–140 r/min |
| Feed Efficiency | 10–35 m/h |
| Travel Speed | 5 km/h |
| Climbing Ability | 21° |
| Machine Weight | 17.8t |
| Dimensions | 7.3 × 2.25 × 2.75 m |
| Applicable Rock Conditions | Loose Layers and Bedrock |
| Drilling Method | Drilling with Down-the-Hole Hammer |
| With Impactor | High Air Pressure Series |
