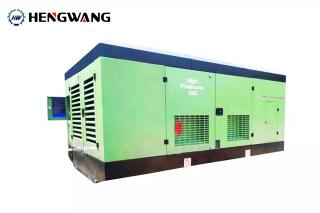

KSZJ-15/14.5 Screw Air Compressor
Capacity: 15m3/min;
Exhaust pressure: 1.45Mpa;
Engine: YC6A180Z-T21
Watch Product Video
  • PRODUCT DESCRIPTION
  • TECHNICAL PARAMETERS

KSZJ-15/14.5 Screw Air Compressor


  • 1. It fully realizes "Convex-Convex" engagement to assist in the formation of hydrodynamic lubrication film, to reduce horizontal leakage passing the contact zone, and to improve efficiency of the compressor; improve rotor processing and testing property.

  • 2. It adopts the design thought of "large rotor, large bearing and low speed method", thus its revolving speed is 30-50% lower than that of other brands to reduce noise, vibration, and exhaust temperature, improve rotor rigidity, increase service life, and reduce sensibility to sundries and oil carbide.

  • 3. Its power range is 4~355KW, where 18.5~250KW applies to the compressor without direct-coupled gearbox, 200KW and 250KW apply to the compressor with Level 4 direct-coupled motor and the speed is as low as 1480 rmp.

  • 4. It fully conforms to and exceeds requirements in GB19153-2003 Limited Values of Energy Efficiency and Evaluating Values of Energy Conservation of Displacement Air Compressors.




Model

Capacity
(m3/min)

Exhaust pressure
(Mpa)

Model of engine

Weight
kg

Dimensions
(mm)

KSZJ-15/14.5

15

1.45

YC6A180Z-T21

2500

3000×1520×1800

KSZJ-18/17

18

1.7

YC6A260L-20

3200

3000×1800×2000

KSZJ-19/18

19

1.8

KSZJ-23/23

23

2.3

YC6MK340L-K30

4850

3500×1950×2030

KSZJ-29/23G

29

2.3

YC6M400L-K20

5000

3500×1950×2030

KSZJ-31/25

31

25

YC6K500-K30

6000

4000×2100×2100

KSZJ-34/25

24

2.5

YC6K550-K30

6800

4250×2100×2200

KSZJ-24/17

24

1.7

YC6MK340L-K30

4500

3500×1950×2030

Feedback form contact with us
Related Product
KSZJ-18/17  Screw Air Compressor
KSZJ-18/17  Screw Air Compressor
Capacity: 18m3/min; Exhaust pressure: 1.7Mpa; Engine: YC6A260L-20...
Learn More>

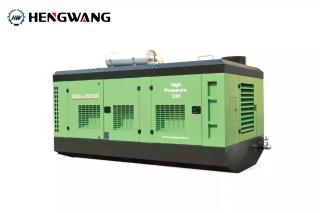

KSZJ-29/23G  Screw Air Compressor
KSZJ-29/23G  Screw Air Compressor
Capacity: 29m3/min; Exhaust pressure: 2.3Mpa; Engine: YC6M400L-K20...
Learn More>

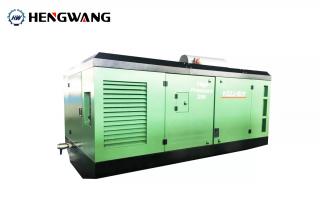

KSZJ-31/25  Screw Air Compressor
