HW423 Integrated DTH Surface Drill Rig

Rated Power: 162kW;

Drill Diameter:90-115 mm;

Weight: 13,000 kg


Watch Product Video
  • PRODUCT DESCRIPTION
  • TECHNICAL PARAMETERS

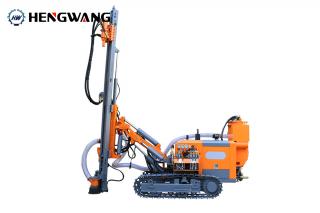

HW423 Integrated DTH Surface Drill Rig


  • Automatic drill pipe handling system with powerful off-road performance for less rig preparation time. Large displacement and high pressure screw air compressor for thorough flushing, to highly increase rock drilling speed and reduce the consumption of drilling tools. Powerful feeding and rotation design for less jamming in complex rock situation. Single operator for labor costs.

  • The standard two-stage dry type dust collector (option water mist system) for much less pollution to the equipment itself, and also environment friendly.

  • Single diesel engine for both the screw air compressor and the hydraulic system, compared with separated drill rig, the total power output of the diesel engine reduced by about 35%, and the maintenance cost lowered by 50%.

  • The track oscillation system for more stable center of gravity of the drill rig. The powerful performance for less numbers of equipment and personnel required for the mine. The protection design of the cab and drill pipe carousel for personnel protection from possible danger.

Model

HW423

Engine

YC6J220-T300 162kW/2,200 rpm
Yuchai YC6J220-T300 162 kW @ 2,200 rpm

Hole Range

90-115 mm

Drill Pipe Storage

7+1

Drill Pipe Diameter

Dia 68 X 3,000 mm

DTH Hammer

3.5"

Rotation Torque ( Max.)

2,540 N.m

F.A.D

12 m3/min

Working Pressure ( Max.)

15 bar

Pull Up Force ( Max.)

20 kN

Tramming Speed ( Max.)

3 km/h (High Speed)
2 km/h (Low Speed)

Gradient

30°

Track Frame Oscilation

±10°

Total Weight

13,000 kg

Transportation Dimensions

9,000X2,360X3,000 mm
