HW415 Separated DTH Surface Drill Rig

Rated Power: 50KW;

Drill Diameter: 90 -115 mm;

Weight: 4,500 kg

Watch Product Video
  • PRODUCT DESCRIPTION
  • TECHNICAL PARAMETERS

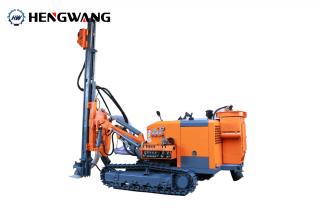

HW415 Separated DTH Surface Drill Rig


  • HW415 separated DTH surface drill rig is another model of high performance low cost rig of Hengwang for surface mining industry. HW415 rig tramming components, hydraulic system ,feed beam, rotary head & the whole rig chassis are upgraded based on data collected & analysis of HW410E application reports by the R&D department. The upgraded rig with improved features of strong climbing ability, large rotation torque, long life motor, hole depth up to three meters at one time and available for various side & horizontal holes, is widely applicable to various surface mining environment.

  • Features:


    • 1.With larger displacement single motor, compact size & large rotation torque, the rotary head adjustable according to different work conditions & requirement, greatly increasing drilling efficiency. Hole range up to 127 mm now.

    • 2.All Controls integrated on the control panel for convenient operation, higher work efficiency, safer and more comfortable operation.

    • 3.Piston tramming motor, special processed casted track shoe for stronger tramming traction force & more stable quality.

    • 4.Equipped with the own developed dry dust collection system for high efficiency & more eco-friendly.

    • Recommended Air compressors:


    • Diesel portable screw compressor: 110SCY-15or 158SCY-15

    • Electric portable screw compressor: 90SDY-14.5


Diesel Engine Specifications

Rig Model

Engine Model

Rated Power

HW415

Yuchai YCD4R12T-70

50 KW

HW415-1

Yuchai YCD4R22T-80

59KW (Dust collection system as
standard equipment)

General Specifications

Drill Pipe Sizes

60 X 3,000 mm

Drill Pipe Dia

90 -115 mm

Boom Angle

75°

Rotation Torque (Max.)

1,850 N.m

Rotation Speed

0 -110 rpm

Feed Force

15 kN

Pull Up Force

25 kN

Feed Type

Chain / Cylinder

Tramming Speed (Max.)

2.5 km/h

Gradient

25°

Total Weight

4,500 kg

Transportation Dimensions

4,900 X 2,000 X 2,200 mm
