XY-8M Hydraulic Drilling Rig
Drilling depth: 500-3000m
Drilling diameter: 530mm
Diesel engine: 177kw
Watch Product Video
  • PRODUCT DESCRIPTION
  • TECHNICAL PARAMETERS

XY-8M Hydraulic Drilling Rig

  • XY series of spindle / rotary drilling rig is based on the current geological exploration in China market demand of our company, combined domestic and foreign similar advantages of drilling rig, XY series of core drilling rig based on research and development of the XY-44M / XY-8M-type shaft assembly and Turntable as one of the exploration rig. Mainly applied to the core of alloy and diamond-sized core drilling; metal, non-metallic solid mineral exploration; shallow oil and natural gas to open precincts; geothermal wells exploration; mine tunnel ventilation, drainage and large diameter foundation pile construction.

Main features

  • 1.Adopted automotive gearboxes and clutches, automotive special shaft shift mechanism, light and agile, with a reasonable speed range and series, stable performance, good generality of parts.

  • 2.Max. output torque of the rotating chassis (XY-8M torque 50000N • m / XY-44M torque 32000N • m).

  • 3.Adopted double gear pump oil, to achieve hydraulic shunt confluence, low power consumption, stable work, the company patented compulsory lubrication mechanism and the hydraulic system air cooler, to avoid high speed and high load parts heating, improve hydraulic system efficiency And the working life of hydraulic components.

  • 4.vertical spindle and steering precautions preclude jointed by cross-axis universal connection, the connection installation is simple and reliable.

  • 5.can be used as a spindle drilling rig, but also as a rotary drilling rig, is drilling in the deep hole and adapt to China's current deep hole exploration of the preferred equipment.

Model

XY-8M

Drilling depth(m)

500-3000


Spindle Speed (r/min)

Forward

110/157/222/309/445/640/905/1256

Reverse

110


Rotary Table Speed (r/min)

Forward

28-314

Reverse

28

Spindle inner diameter (mm)

530

MAX torque(N•m)

50000

Spindle stroke (mm)

1000

Machine displacement (mm)

530

Max pull force of one rope(KN)

150

Roll capacity (in)

120

Rope dia. (ram)

21.5

Pull speed (m/s)

0. 71-8.19

motor power (kW)

Y280S-4/75

Diesel power (kW)

YC6A240-33/177

Working dimension (mm)

5185x1455x3140

Weight of machine (kg)

9500

Feedback form contact with us
Related Product

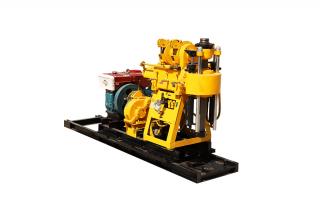

HW160 Hydraulic Drilling Rig
HW160 Hydraulic Drilling Rig
Drilling depth: 160m Drilling diameter: 75-300mm Rated Power: 13.2Kw...
Learn More>

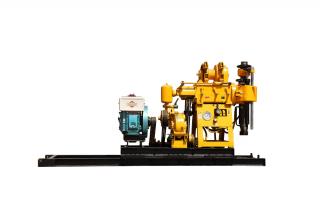

HW190 Hydraulic Drilling Rig
