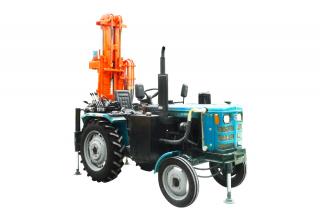

TQZ200 Pneumatic Drill Rig
Drilling depth: 200m
Drilling diameter: 130-219mm
Engine Power: 40Hp

  • PRODUCT DESCRIPTION
  • TECHNICAL PARAMETERS

TQZ200 Pneumatic Drill Rig

  • This product is an integrated drilling equipment by combining tractor and pneumatic water well drilling rig,which is easy to walk and combined the air compressor. Make the construction more convenient and efficient.

  • Tractor pneumatic drilling rig with new DTH impact technology, supporting high torque hydraulic motor rotation and large bore hydraulic cylinder push, the multi - cylinder engine produced by famous factory provides power for the hydraulic system, two grade air filter and air compressor intake design to prolong the diesel engine service life.

Drilling rig main features

  • Tractors pneumatic water well drilling rig according to the user needs could be matched with different horsepower tractor chassis, different specification drilling tools , air compressor, DTH impactor and blast pipe, apply for variety of specifications.

  • Tractor pneumatic wells drilling machine is applicable to civil engineering drilling, geothermal drilling, with large diameter and deep drilling footage, fast, mobile and flexible, wide use of regions advantages, combined the advantages of drilling machine and tractor.

Model

TQZ200

Overall weight(T)

4.2

Dimension (mm )

3400*1500*2200

Drilling diameter (mm )

130-219

Drilling depth (m)

200

One-time advance length of the drill (mm )

1500

Traveling speed (km/h )

30

Climbing capacity (max )

25°

Minimum ground clearance (mm )

250

Working Air Pressure (mpa )

1.45-2.5

Air consumption (m3 /min )

15-27

Main machine power (HP)

40

Rotation speed (pm)

38 - 80

Rotary torque (Nm )

4000—5000
