HWH930 Guardrail Pile Driver
Loader Type: 930
Engine Power: 60KW
Power Head: 68#
  • PRODUCT DESCRIPTION
  • Technical Parameters

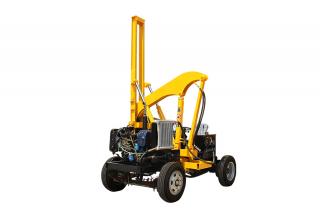

HWH930 Guardrail Pile Driver

  • The loader type pile driver is a product developed by Hengwang Group according to the market demand and its own technology. It is a new product integrating loading, piling and drilling. Adopt new design concept, meticulously developing the overall function, and the modularity and consideration of the structure, fully enclosed the wooden installation structure, more conducive to rapid installation and transition of the product, and can be widely applied to the pile hole drilling of road and high-speed road guardrails.

Model

HWH930

Loader Type

930

Engine Power

55/60kw

Hydraulic system flow

220-280L/Min

Rated Pressure

15Mpa

Power Head

68#

Strike Frequency

400-800Bpm

Power Head Weight

140Kg

Drilling Speed

800-2000mm/min

Impactor Working Pressure

0.6-1.2Mpa

wheel-track

1470mm

Wheelbase

2000mm

Overall Dimension

4200*2300*2850mm

Weight

5.2T

Hammer flow

45-85L/min

Hammer Pressure

12-15Mpa

Drill Diameter

120-200mm

Impactor Impact frequency

900-1000Bpm

Air Consumption

7-13m³/min
