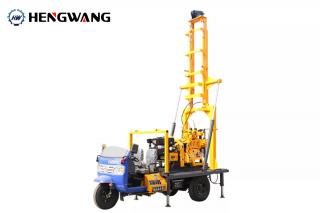

HW160S Hydraulic Drilling Rig
Drilling depth: 160m
Drilling diameter: 75-300mm
Rated Power: 11Kw
Watch Product Video
  • PRODUCT DESCRIPTION
  • TECHNICAL PARAMETERS

HW160S Hydraulic Drilling Rig

  • Tricycle drilling rig is designed to meet the needs of high speed, high efficiency and high mobility in field drilling. The machine is reasonable in structure, simple in operation, convenient in maintenance and transportation, and can be hoisted without crane after being transported to the working site. It is suitable for geological survey exploration, basic exploration of roads and high-rise buildings, various structural inspection holes on concrete, river embankments, subgrade grouting hole and direct grouting , civil water wells and ground temperature central air conditioning.

Main features

  • 1.Tricycle drilling rigs are multi-function hydraulic spindle Rotary drilling rig, HW—160S model.

  • 2.Vehicle chassis Wuzheng tricycle 7YP-1475D1, the drive system , winch and mud pump and other important accessories installed on the chassis, the layout is reasonable and compact, easy to operate.

  • 3.Equipped with BW-160 or BW-250 mud pump, high pressure ,big flow , it ensures to reach drilling depth and diameter.

  • 4.Drilling rig self-equipped with mobile devices, drilling rig can be achieved before and after the host itself to facilitate the operation of the wellhead.

  • 5.Drilling tower is hydraulic landing manual folding tower, easy to operate, safe and convenient.

Whole machine parameters

Model

HW-160S

Drilling depth(m)

160

Open hole dia. (mm)

500(Soil), 220(Rocks)

End hole dia. (mm)

75

Drill rod dia. (mm)

42, 50

drill angle (°)

90-75

Matching power (kW)

11

Weight (kg)

2750

Dimension(L*W*H) (m)

4*1. 7*2. 3

Spindle

Speed (r/min)

142/285/570

Stroke (mm)

450

Tricycle chassis

Model

wuzheng
7YP-1475D1

Emission standard

GB19756-2005 (Ⅱ)

Rated power (kW)

18. 3

Rated speed (r/min)

2200

Drill Tower

Rated load (ton)

18

Effective height (m)

6.5

Mud pump

Flow (L/min)

160

Max. pressure (Mpa)

1. 3

reciprocal times /mi n

165

Hose

Inlet hose dia. (mm)

51

Outlet hose dia. (mm)

32
