HW-1500 Full Hydraulic Diamond Core Drilling Rig

Drill Diameter: 50-114mm;

Drill depth: 400-1500m;

Related Power: 132Kw

Watch Product Video
  • PRODUCT DESCRIPTION
  • TECHNICAL PARAMETERS

HW-1500 Full Hydraulic Diamond Core Drilling Rig

  • HW-1500 diamond core drill utilizes an advanced load sensing control system within it’s hydraulic system, which is currently being adopted by the major international producers. The rig features quality pedrail tracks that provides the rig with strong climbing capabilities that enhances it’s capabilities even in the toughest terrain.

  • This drill rig is suited for the following drilling applications: Diamond core drilling; Directional drilling; Reverse circulation continuous coring; Percussion rotary ; Geo-tech; Water bores; Anchorage.

Product Features

  • 1, The rig offers a smooth hydraulic transmission, operating at low noise levels. Whilst providing convenience to the operation is labor saving and focuses on promoting work safety on site.

  • 2, The whole hydraulic system of the drill is adopted international advanced load-sensitive control system, efficient and sumptuary, main hydraulic elements are all original imported, stable using and reliability.

  • 3, The pedrail set has high driving force and powerful climbing ability.

  • 4, The rotation head is a step-less speed transmission, offering a wide range of speeds and torque (up to 3 speeds), the rotation head can be side racked via hydraulic rams for added convenience and efficiency especially during rod trips.

  • 5, Hydraulic chuck jaws and foot clamps offers a fast clamping action, designed to be reliable, neutral. The foot clamps are designed to suit various different drill rod sizes via the use of different size slip jaws.

  • 6, Feed stroke at 3.5 meters, reduces operation time, improves drilling efficiency and reduces inner tube core blockages.

  • 7, Braden main winch (USA) features a stepless speed transmission from Rexroth. Single rope hoist capacity up to 8.1t. Wireline winch is also equipped with a stepless speed transmission, offering a wide speed range.

  • 8, The rig benefits from a tall mast, which allows for the operator to pull rods at up to 6m lengths, making rod trips faster and more efficient.

  • 9, The mast could be folded to decrease the transport size and fulfill the civil road transportation statute. The drilling rig could be transported in container.

  • 10, Equipped with all the essential gauges, including, Rotation speed; Feed Pressure; Ammeter; Voltmeter; Main Pump/Torque gauge; Water pressure gauge

Model

HW-1500



Drilling Capacity (straight hole)

BQ(Φ55.5mm)

1500 m

NQ(Φ71mm)

1300 m

HQ(Φ89mm)

600 m

PQ(Φ114mm)

400 m





Rotator Capacity

RPM

10-960 rpm

Max Torque

2880 N·m

Max Feeding Power

50 kN

Max Lifting Power

150 kN

Diameter of Chuck

94 mm

Feed stroke

3400 mm



Capacity of Main Hoist

Hoisting Force

16000 kg

Main hoist speed

8-46 m/min

Steel Wire Diameter

19 mm

Steel Wire Length

26 m



Capacity of Steel Wire Hoist

Hoisting Force

1500 kg

Main hoist speed

30-210 m/min

Steel Wire Diameter

6 mm

Steel Wire Length

1500 m



Mast

Mast Height

9.5 m

Drilling Angle

45°- 90°

Mast Mode

Hydraulic

Motivity

Mode

Engine

Power

132 kW

Main Pump Pressure

27 MPa

Chuck Mode

Hydraulic

Clamp

Hydraulic

Weight

10600kg

Transport Way



Pedrail Mode

Feedback form contact with us
Related Product

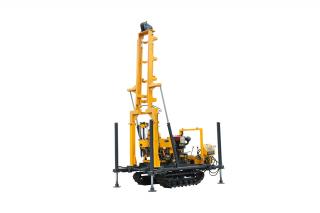

HW160L Hydraulic Drilling Rig

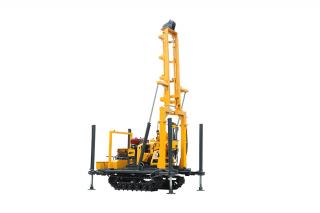

HW160L Hydraulic Drilling Rig
Drilling diameter: 75-325mm Drilling depth: 160m Rated Power: 13.2Kw...
Learn More>
HW190L Hydraulic Drilling Rig

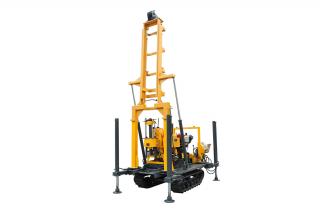

HW190L Hydraulic Drilling Rig
