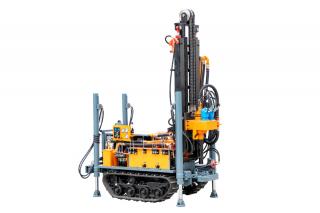

HQZ450L Pneumatic Drill Rig
Drilling depth: 450m
Drilling diameter: 130-400mm
Engine Power: 105Kw
Watch Product Video
  • PRODUCT DESCRIPTION
  • TECHNICAL PARAMETERS

HQZ450L Pneumatic Drill Rig

  • Full hydraulic control, be convenient and flexible: Drilling speed, torque, axial pressure, anti-axial pressure, propulsion speed and speed can be adjusted at any time to meet the needs of different drilling tools and different construction techniques

  • Top drive rotary drilling: easy to install and remove the drill rod, shorten the auxiliary time, and fasten the drilling of follow-pipe.

  • Multi-function drilling: A variety of drilling processes can be used on this rig, such as: DTH drilling, mud drilling, roller cone drilling, drilling with the follow-pipe and the being developed core drilling, etc. This drilling machine can be installed, according to user needs, mud pump, generator, welding machine, cutting machine. Meanwhile, it also comes standard with a variety of winch.

  • High working efficiency: thanks to full hydraulic and top drive rotary drilling, this drilling rig is adapt to a variety of drilling technology and drilling tools, has convenient and flexible control, fast drilling speed, short auxiliary time, and thus high operating efficiency.

  • Low cost: drilling on the rock is dominated by DTH drilling technology, DTH hammer rock drilling operation is high efficiency, drilling cost of per meter is lower.

  • High leg crawler type: high leg is easy for loading and unloading, no need of crane in truck loading. Crawler walking is more adapt to the movement in muddy field.

  • The role of the oil mist: drilling on the rock is dominated by DTH drilling technology, DTH hammer rock drilling operation is high efficiency, lubricated impactor has longer service life, drilling cost of per meter is lower.

  • Scope of application: Suitable for workers, people drilling, geothermal drilling, with compact structure, fast drilling speed, movable and flexible, wide geographical application advantages. Especially be suitable for water extraction in mountainous and rock formations.

Model

HQZ450L

Total Weight(T )

8.7

Dimensions(mm )

5300*2050*2700

Drilling Diameter(mm)

130-400

Drilling Depth(m)

450

One-time Advance Length of the Drill(mm)

3000/6000

Walking Speed(km/h)

6

Climbing Ability(max )

25

Min.Ground Clearance(mm )

300

Working Air Pressure(Mpa )

1.7-3.5

Air Consumption(m3 /min )

17-35

Main Power(kw)

100/6 cylinder

Rotation(rpm)

45-75

Rotary Torque(N.m )

9000-10000

Feedback form contact with us
Related Product
HWY160 Pneumatic Drill Rig
HWY160 Pneumatic Drill Rig
Drilling depth: 150m Drilling diameter: 130-203mm Engine Power: 42Kw...
Learn More>
HQZ-180L Pneumatic Drill Rig
HQZ-180L Pneumatic Drill Rig
Drilling depth: 180m Drilling diameter: 130-294mm Engine Power: 42Kw...
Learn More>

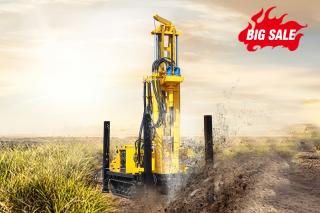

Promotion!!! HQZ220L Pneumatic Drill Rig
