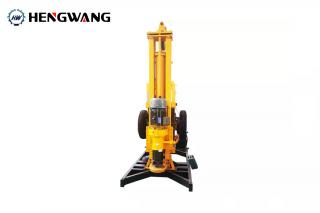

HQZ150 Pneumatic Drill Rig
Drilling depth: 150m
Drilling diameter: 100-219mm
Air consumption: 13-21m3 /min
Watch Product Video
  • PRODUCT DESCRIPTION
  • TECHNICAL PARAMETERS

HQZ150 Pneumatic Drill Rig

  • Application: Suitable for workers, civil drilling, geothermal drilling, with a large diameter drilling, deep drilling, mobile and flexible application of geographical advantages.

(Model)

HQZ150

Drilling dia.(mm)

100-219

Drilling depth(m)

150

Drilling direction (° )

to the ground 45°-90°

one time advance length of the drill(mm )

1500

Electric motor power(kw)

7.5

Drill swing speed(rpm )

0-62

Air Pressure(Mpa )

0.8-2.1

Air consumption(m3 /min)

13-21

Total weight(kg)

1300
